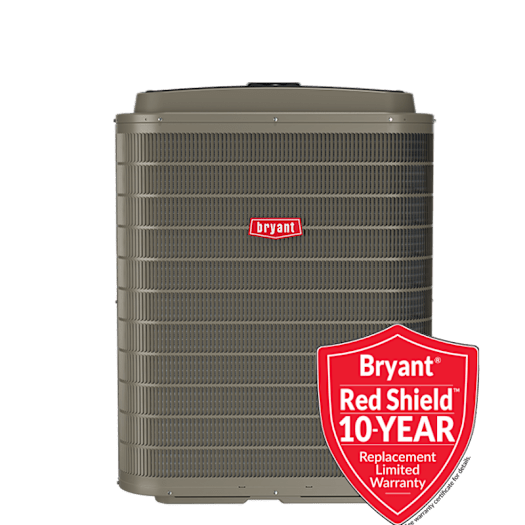

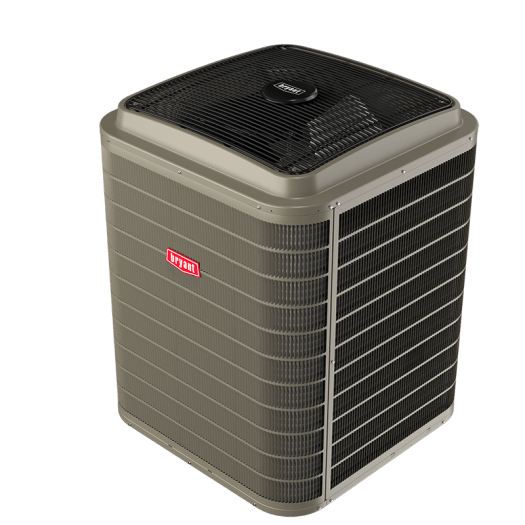

EVOLUTION™ EXTREME VARIABLE-SPEED HEAT PUMP (NORTH)
EVOLUTION™ EXTREME VARIABLE-SPEED HEAT PUMP (NORTH) 293VAN
Taking Comfort And Quiet To A Whole New Level
Bryant's most powerful heat pump, this unique heat pump uses inverter technology to deliver variable-speed control with our highest efficiencies. That translates to highly efficient heating and cooling operation optimized to current conditions down to 25% capacity for ultra-quiet, even-temperature comfort. What's more, it can provide exceptional summer dehumidification.
- Energy Star® Qualified :
- All sizes qualified
- COOLING EFFICIENCY :
- Up to 23 SEER2
- HEATING EFFICIENCY :
- Up to 10 HSPF2
Features
- Enjoy cool, summer comfort with up to 23 SEER2 / up to 13 EER2 efficiency
- Take advantage of efficient electric heating well into the winter months with up to 10 HSPF2 efficiency
- Optimal dehumidification capability with the Evolution™ Connex™ Control
- Variable-speed operation with longer, lower stage cycles to give you more energy savings and better temperature management
- Exceptionally quiet operation in low speeds down to 55 decibels
- Quiet Mode feature allow homeowners to limit the units sound level from the wall control – ensuring quiet time on your patio and an uninterrupted night sleep
- New advanced defrost uses the latest in heat pump technology to only run when needed and to stop defrost only when the coil is free of frost
- Soft start and smooth ramp up to operating speeds
- Senses operating conditions and adjusts to enhance system reliability
- Excellent performance with zoned systems
- Bryant's smallest ducted, variable-speed heat pump can fit discreetly into your landscape
- Uses low GWP Puron Advance® refrigerant
- Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
- Attractive, louvered cabinet protects the coil against physical damage
- 10-year parts limited warranty upon registration1
- Red ShieldTM 10-year unit replacement warranty (compressor failure only) upon timely registration2
- 1 The limited warranty period is five years on parts if not registered within 90 days except in jurisdictions where warranty benefits are not conditioned upon registration will automatically receive a 10-year parts limited warranty. See limited warranty certificate for complete details and restrictions.
- 2 Unit replacement limited warranty is not available to subsequent owners. The limited warranty period is five years if not registered within 90 days except in jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year unit replacement limited warranty. See limited warranty certificate for complete details and restrictions.
Specifications
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 23 SEER2/ up to 13 EER2/ Up to 10 HSPF2
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all sizes
Cooling and heating stages Full variable-speed operation for load matching performance
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling/Heating Excellent levels of Bryant comfort control to minimize temperature fluctuation
Dehumidification Optimal summer humidity management through low stage operation when managed by the Evolution™ Connex™ Control
Operating Temperature Heating mode operation down to -13°F outdoor ambient temperature. Cooling mode operation up to 125°F outdoor ambient temperature
SOUND
Quiet levels 55 dB during lowest capacity cooling operating condition
AeroQuiet™ System II design Compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
Startup Soft start and smooth ramp up
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution™ Connex™ Control
Over-the-Air Software Updates Over-the-air software updates can reduce or eliminate service calls while ensuring optimum system performance and home comfort. Always have access to the latest performance enhancements and upgrades.
Best-in-class Digital Servicing Tools Purchasing a connected product from Bryant provides the peace of mind that your dealer can remotely monitor and troubleshoot your HVAC system, protecting your investment and providing efficient and reliable service.
TECHNOLOGY
Compressor Fully variable compressor with 25-100% capacity range.
Control Inverter driven compressor and fan motor managed by the Evolution™ Connex™ Control
Refrigerant Puron Advance™ refrigerant
Compatibility Designed for best efficiencies when part of Evolution system with variable-speed blower on indoor furnace or fan coil
Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier
Diagnostics Enhanced diagnostics with the Evolution™ Connex™ Control
Capacity 3-5 tons
AESTHETICS
Protection Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
- Enjoy cool, summer comfort with up to 23 SEER2 / up to 13 EER2 efficiency
- Take advantage of efficient electric heating well into the winter months with up to 10 HSPF2 efficiency
- Optimal dehumidification capability with the Evolution™ Connex™ Control
- Variable-speed operation with longer, lower stage cycles to give you more energy savings and better temperature management
- Exceptionally quiet operation in low speeds down to 55 decibels
- Quiet Mode feature allow homeowners to limit the units sound level from the wall control – ensuring quiet time on your patio and an uninterrupted night sleep
- New advanced defrost uses the latest in heat pump technology to only run when needed and to stop defrost only when the coil is free of frost
- Soft start and smooth ramp up to operating speeds
- Senses operating conditions and adjusts to enhance system reliability
- Excellent performance with zoned systems
- Bryant's smallest ducted, variable-speed heat pump can fit discreetly into your landscape
- Uses low GWP Puron Advance® refrigerant
- Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
- Attractive, louvered cabinet protects the coil against physical damage
- 10-year parts limited warranty upon registration1
- Red ShieldTM 10-year unit replacement warranty (compressor failure only) upon timely registration2
- 1 The limited warranty period is five years on parts if not registered within 90 days except in jurisdictions where warranty benefits are not conditioned upon registration will automatically receive a 10-year parts limited warranty. See limited warranty certificate for complete details and restrictions.
- 2 Unit replacement limited warranty is not available to subsequent owners. The limited warranty period is five years if not registered within 90 days except in jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year unit replacement limited warranty. See limited warranty certificate for complete details and restrictions.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 23 SEER2/ up to 13 EER2/ Up to 10 HSPF2
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all sizes
Cooling and heating stages Full variable-speed operation for load matching performance
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling/Heating Excellent levels of Bryant comfort control to minimize temperature fluctuation
Dehumidification Optimal summer humidity management through low stage operation when managed by the Evolution™ Connex™ Control
Operating Temperature Heating mode operation down to -13°F outdoor ambient temperature. Cooling mode operation up to 125°F outdoor ambient temperature
SOUND
Quiet levels 55 dB during lowest capacity cooling operating condition
AeroQuiet™ System II design Compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
Startup Soft start and smooth ramp up
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution™ Connex™ Control
Over-the-Air Software Updates Over-the-air software updates can reduce or eliminate service calls while ensuring optimum system performance and home comfort. Always have access to the latest performance enhancements and upgrades.
Best-in-class Digital Servicing Tools Purchasing a connected product from Bryant provides the peace of mind that your dealer can remotely monitor and troubleshoot your HVAC system, protecting your investment and providing efficient and reliable service.
TECHNOLOGY
Compressor Fully variable compressor with 25-100% capacity range.
Control Inverter driven compressor and fan motor managed by the Evolution™ Connex™ Control
Refrigerant Puron Advance™ refrigerant
Compatibility Designed for best efficiencies when part of Evolution system with variable-speed blower on indoor furnace or fan coil
Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier
Diagnostics Enhanced diagnostics with the Evolution™ Connex™ Control
Capacity 3-5 tons
AESTHETICS
Protection Attractive DuraGuard™ Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
