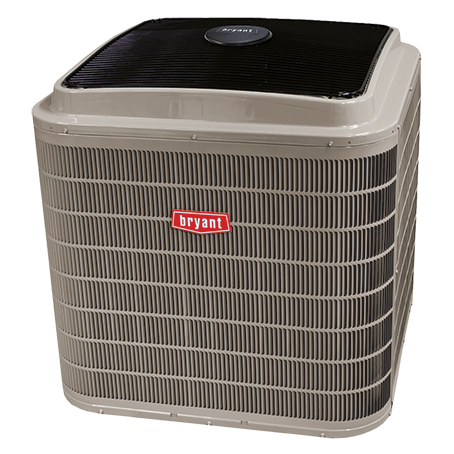

Evolution® 2-Stage Heat Pump
Evolution® 2-Stage Heat Pump 289B
Advanced Year-round Comfort, Efficiency and Reliability
This reliable, high-efficiency Bryant® Evolution® series heat pump offers up to 19 SEER cooling and 10 HSPF heating. With 2-stage operation, it delivers energy-saving comfort, extra-quiet low-stage heating and cooling, and enhanced humidity control during the hot, sticky summer months.
- Product Line :
- Heat Pumps - Evolution Series
- Energy Star :
- All sizes qualified
- SEER Efficiency Range :
- 16 to 19.9 SEER
- SEER Efficiency :
- up to 19
- HSPF Range :
- 10+ HSPF
- HSPF Efficiency :
- up to 10.0
- Compressor Technology :
- Two-Stage
- Noise Level Range :
- 60 to 69 Decibels
- Noise Level :
- as low as 66
- Proposition 65 Product Warnings :
- 343824-2 Lead and Lead Compounds
Features
- Enjoy cool, summer comfort with up to 19 SEER/13.7 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 10 HSPF efficiency
- Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
- Enhanced summer dehumidification through two-stage operation
- Sound as low as 66 dB (quiet as a vacuum)*
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution™ Connex™ Control for ultimate performance
- AeroQuiet System™ design
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
*Quietest size within each model group during most common cooling operating condition
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 19 SEER/13.7 EER cooling; Up to 10 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Cooling and heating stages Two-stage operation for greater efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation
Dehumidification Better humidity management from 2-stage units when managed by the Evolution™ Connex™ Control
SOUND
Quiet levels During lowest capacity cooling operating condition: 66 dB
AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution™ Connex™ Control
TECHNOLOGY
Compressor 2-stage scroll
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system
Protections High pressure switch, loss of charge switch and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-5 tons
AESTHETICS
Design Attractive DuraGuardTM Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
- Enjoy cool, summer comfort with up to 19 SEER/13.7 EER efficiency
- Take advantage of efficient electric heating well into the winter months with up to 10 HSPF efficiency
- Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
- Enhanced summer dehumidification through two-stage operation
- Sound as low as 66 dB (quiet as a vacuum)*
- Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution™ Connex™ Control for ultimate performance
- AeroQuiet System™ design
- DuraGuard™ Plus protection system
- Environmentally-sound Puron® refrigerant
- 10-year parts limited warranty upon registration1
±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.
*Quietest size within each model group during most common cooling operating condition
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 19 SEER/13.7 EER cooling; Up to 10 HSPF heating
ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes
Cooling and heating stages Two-stage operation for greater efficiency
Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies
COMFORT MANAGEMENT
Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation
Dehumidification Better humidity management from 2-stage units when managed by the Evolution™ Connex™ Control
SOUND
Quiet levels During lowest capacity cooling operating condition: 66 dB
AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
CONVENIENCES
Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution™ Connex™ Control
TECHNOLOGY
Compressor 2-stage scroll
Refrigerant Puron® refrigerant
Compatibility Designed for best efficiencies when part of Evolution system
Protections High pressure switch, loss of charge switch and filter drier
Diagnostics Enhanced diagnostics with Evolution control
Capacity 2-5 tons
AESTHETICS
Design Attractive DuraGuardTM Plus system
Construction Durable, sheet metal construction
Paint Baked-on, complete outer coverage, powder paint
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
