Legacy™ Multi-speed Geothermal Heat Pump

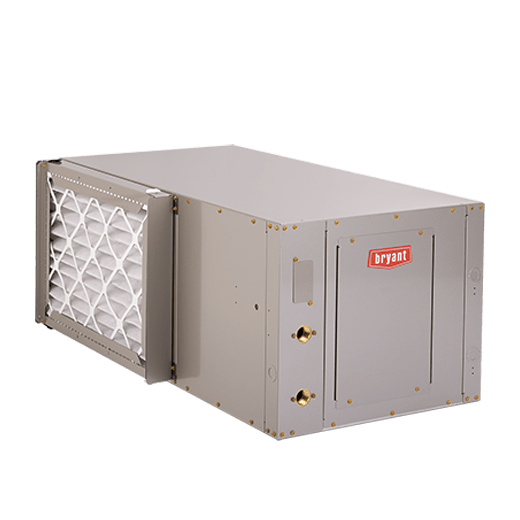

Legacy™ Multi-speed Geothermal Heat Pump GBA
The Complete Package of Value, Comfort and Extra Energy Savings
The GBA model is impressively efficient and leverages a multi-speed blower. So, it can help you cut costs today and for the long haul. And with built-in sound dampeners like full insulation and double-isolation compressor mounting, you'll still enjoy quiet comfort.
- EER Efficiency Range :
- Up to 24.0 EER (closed loop); up to 27.0 EER (open loop)
- COP Efficiency Range :
- Up to 4.1 COP (closed loop); up to 4.7 COP (open loop)
- Compressor Type :
- Two-stage scroll (2-5 ton models); single-stage rotary (1.5 ton model)
Features
- Manage your utility costs with high-efficiency geothermal (efficiency is unit size dependent)
- Variable-speed air delivery aids quiet performance
- Insulated cabinet for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Corrosion-resistant coil for durability
- 2" MERV 8 filtration
- Lower global warming potential Puron Advance™ refrigerant
- Passive dehumidification standard
- Active Puron Advance™ A2l dissipation system factory installed
- Filter cabinet built-in for easy filter changes
- Compatible with the Bryant Smart Thermostat
- 10-year parts and 5-year labor limited warranty1
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
- Smart startup add-on for smoother operation
1 To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
Specifications
EFFICIENCY MANAGEMENT
Cooling Efficiency Up to 24.0 EER (closed loop); up to 27.0 EER (open loop)
Heating Efficiency Up to 4.1 COP (closed loop); up to 4.7 COP (open loop)
Heating and Cooling Stages Two-stage operation (2-5 ton models); single-stage (1.5 ton model)
ENERGY STAR® ENERGY STAR® qualified in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation, double-isolation compressor mounting, and sound blanket
CONVENIENCES
Filter Cabinet Built-in for easy filter changes
Maintenance Reminders With compatible control
TECHNOLOGY
Blower Motor Multi-speed
Compressor Two-stage scroll (2-5 ton models); single-stage rotary (1.5 ton model)
Control Board Microprocessor
Refrigerant Puron Advance™
Refrigerant Management Thermostatic expansion valve
Protection Corrosion-resistant coil protection for long life
INSTALLATION
Positioning Vertical upflow and horizontal units available
AESTHETICS
Capacity 1.5-5 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
- Manage your utility costs with high-efficiency geothermal (efficiency is unit size dependent)
- Variable-speed air delivery aids quiet performance
- Insulated cabinet for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Corrosion-resistant coil for durability
- 2" MERV 8 filtration
- Lower global warming potential Puron Advance™ refrigerant
- Passive dehumidification standard
- Active Puron Advance™ A2l dissipation system factory installed
- Filter cabinet built-in for easy filter changes
- Compatible with the Bryant Smart Thermostat
- 10-year parts and 5-year labor limited warranty1
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
- Smart startup add-on for smoother operation
1 To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Cooling Efficiency Up to 24.0 EER (closed loop); up to 27.0 EER (open loop)
Heating Efficiency Up to 4.1 COP (closed loop); up to 4.7 COP (open loop)
Heating and Cooling Stages Two-stage operation (2-5 ton models); single-stage (1.5 ton model)
ENERGY STAR® ENERGY STAR® qualified in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation, double-isolation compressor mounting, and sound blanket
CONVENIENCES
Filter Cabinet Built-in for easy filter changes
Maintenance Reminders With compatible control
TECHNOLOGY
Blower Motor Multi-speed
Compressor Two-stage scroll (2-5 ton models); single-stage rotary (1.5 ton model)
Control Board Microprocessor
Refrigerant Puron Advance™
Refrigerant Management Thermostatic expansion valve
Protection Corrosion-resistant coil protection for long life
INSTALLATION
Positioning Vertical upflow and horizontal units available
AESTHETICS
Capacity 1.5-5 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
