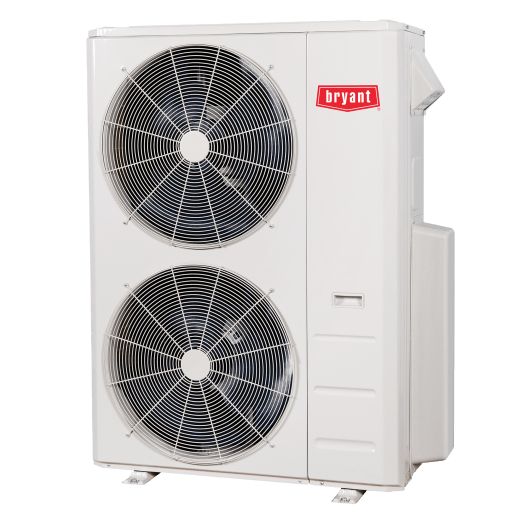

Preferred™ Multi-Zone High-Heat Heat Pump with Basepan Heater
Preferred™ Multi-Zone High-Heat Heat Pump with Basepan Heater 38MGHB
HIGH HEAT COMFORT FOR UP TO FIVE SEPARATE SPACES, NO DUCTS REQUIRED
Perfect for a home without ductwork or a newly converted space, our PreferredTM Series multi-zone heat pump might be the right choice for you. As a part of the 38MGHB Multi-Zone Ductless System, you can use up to five indoor units supported by just one outdoor unit. The Inverter compressor delivers year-round comfort on the hottest summer days to colder, winter nights (98% capacity as temperatures down to 5° F when properly sized and matched with specific indoor units).
- Energy Star® Qualified :
- Some sizes qualified
- COOLING EFFICIENCY :
- Up to 26 SEER2
- HEATING EFFICIENCY :
- Up to 10.3 HSPF2
Features
- 98% Heating Capacity at 5° F (-15° C) (Sizes 30, & 48)
- Inverter Compressor
- Up to 26 SEER2 cooling efficiency
- Up to 10.3 HSPF2 heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor combinations
- Available in 208/230V
- Built-in basepan heater
- Total piping lengths range from 197 ft. to 328 ft. depending on unit size
- Connects three to five multiple style indoor units (PreferredTM) to a single outdoor unit
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 61 decibels1
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619PB High Wall, 40MBCQ Cassette, 40MBDQ Ducted, 40MBFQ Floor Console
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
Specifications
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 26 SEER2/up to 13.6 EER2/up to 10.3 HSPF2
ENERGY STAR® Select sizes are ENERGY STAR ® certified based on indoor unit combinations
COMFORT MANAGEMENT
Cooling Outdoor range operates from -22° F up to 122° F (-30° C up to 50° C)
Heating Outdoor range operates from -22° F up to 75° F (-30° C up to 24° C)
SOUND
Quiet Levels As low as 61 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, and loss of charge
System Capacity 2, 2.5, 3 & 4 Ton
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
- 98% Heating Capacity at 5° F (-15° C) (Sizes 30, & 48)
- Inverter Compressor
- Up to 26 SEER2 cooling efficiency
- Up to 10.3 HSPF2 heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor combinations
- Available in 208/230V
- Built-in basepan heater
- Total piping lengths range from 197 ft. to 328 ft. depending on unit size
- Connects three to five multiple style indoor units (PreferredTM) to a single outdoor unit
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 61 decibels1
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619PB High Wall, 40MBCQ Cassette, 40MBDQ Ducted, 40MBFQ Floor Console
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 26 SEER2/up to 13.6 EER2/up to 10.3 HSPF2
ENERGY STAR® Select sizes are ENERGY STAR ® certified based on indoor unit combinations
COMFORT MANAGEMENT
Cooling Outdoor range operates from -22° F up to 122° F (-30° C up to 50° C)
Heating Outdoor range operates from -22° F up to 75° F (-30° C up to 24° C)
SOUND
Quiet Levels As low as 61 dB(A)1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, and loss of charge
System Capacity 2, 2.5, 3 & 4 Ton
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
