Preferred™ Light Commercial Outdoor Unit
error This product is no longer in production and may only be available in limited quantities. Contact your dealer for further details.

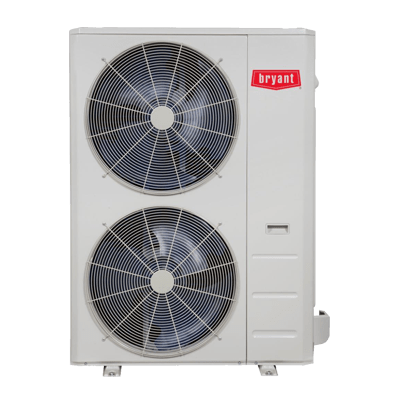

Preferred™ Light Commercial Outdoor Unit 38MBR
Heating and Cooling Comfort that Goes the Distance

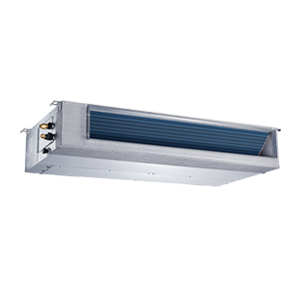

Designed to pair with our Preferred™ Series high-static Ducted indoor unit, the 38MBR Ductless single zone heat pump delivers the comfort you need for a new or converted space. No stranger to long-distance connections, this model works efficiently with line lengths of up to 213 feet between the indoor and outdoor unit. This compact and durable model includes an Inverter-controlled compressor for quiet and efficient operation.
- SEER Efficiency :
- Up to 17.4
- HSPF Efficiency :
- Up to 10.5
Features
STANDARD FEATURES
- Inverter Compressor
- Up to 17.4 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Sizes: 36 / 48 / 58
- Available 208/230V
- Built-in Basepan Heater
- Condenser high temp protection
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 62.5 dB(A)
- Total piping length up to 213 ft.
Specifications
EFFICIENCY
Up to 17.4 SEER
Up to 8.9 EER
Up to 10.5 HSPF
PERFORMANCE
Outdoor sound: as low as 62.5 decibels
OUTDOOR OPERATING RANGE
Cooling operating range-4° ~ 122° F (-20° ~ 50° C)
Heating operating range-22° ~86°F (-30° ~30° C)
LINE LENGTH
Total piping length 213 ft. (65 m)
TECHNOLOGY
Inverter Compressor
CAPACITIES
3 - 4.8 tons
REQUIREMENTS
208/230 V
AESTHETICS
Heavy-gauge, galvanized steel construction
Primed and coated with a 100% coverage, baked-enamel finish in white
STANDARD FEATURES
- Inverter Compressor
- Up to 17.4 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Sizes: 36 / 48 / 58
- Available 208/230V
- Built-in Basepan Heater
- Condenser high temp protection
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 62.5 dB(A)
- Total piping length up to 213 ft.
EFFICIENCY
Up to 17.4 SEER
Up to 8.9 EER
Up to 10.5 HSPF
PERFORMANCE
Outdoor sound: as low as 62.5 decibels
OUTDOOR OPERATING RANGE
Cooling operating range-4° ~ 122° F (-20° ~ 50° C)
Heating operating range-22° ~86°F (-30° ~30° C)
LINE LENGTH
Total piping length 213 ft. (65 m)
TECHNOLOGY
Inverter Compressor
CAPACITIES
3 - 4.8 tons
REQUIREMENTS
208/230 V
AESTHETICS
Heavy-gauge, galvanized steel construction
Primed and coated with a 100% coverage, baked-enamel finish in white
Documents
California residents please see Proposition 65

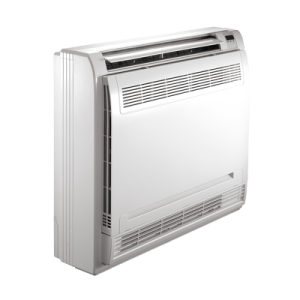

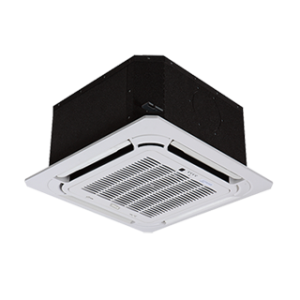

Compatible Solutions To Fit Your Comfort & Aesthetic Needs
