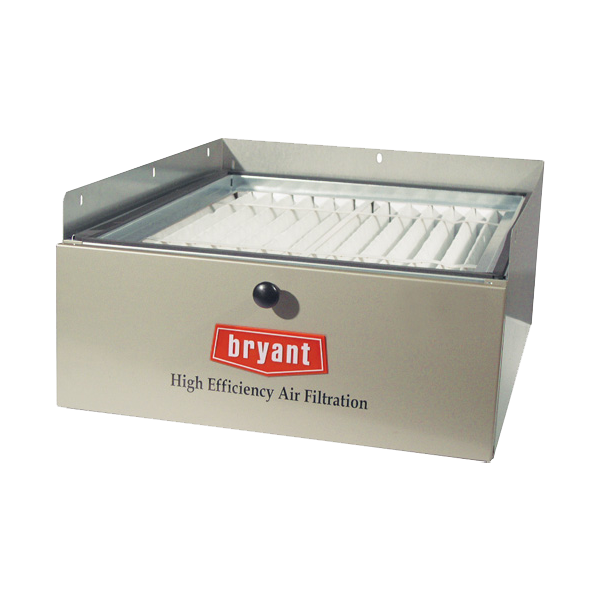

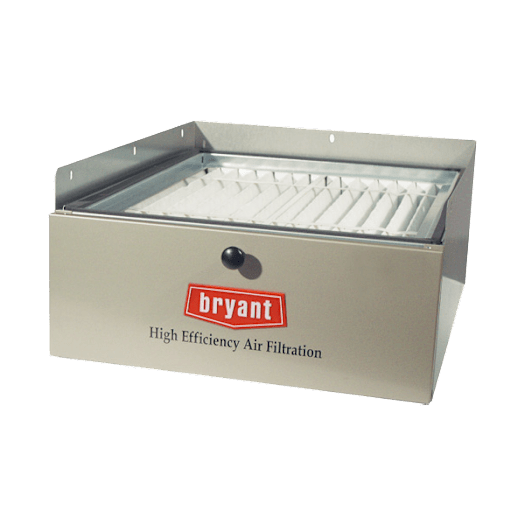

Legacy™ Line Mechanical Air Cleaner
Legacy™ Line Mechanical Air Cleaner FNCCAB
High-Efficiency Indoor Air Filtration
The Legacy Line Mechanical Air Cleaner can protect and improve heating and cooling system performance and is available with either a MERV 8, MERV 11 or MERV 13 air filter. Cleaning the air in your home has never been simpler thanks to the easy to remove filter cabinet door.
- Performance :
- Standard Filtration
- MERV Efficiency :
- MERV 8, MERV 11 or MERV 13
Features
- Available with either a MERV 8, MERV 11 or MERV 13 air filter.
- MERV 13 model effectively clearing the air of more than 90% of airborne particles as small as 1.0 micron in size1
- Helps protect heating and cooling equipment
- Deep pleated filters hold more dust for fewer filter changes
- Easy to replace filters. See owners manual for replacement schedule.
- 10-year parts limited warranty on cabinet upon timley registration2
1 Based on third-party testing (2013) showing 90% of particles size 1.0 to 3.0 captured and 98% of particles size 3.0 to 10 captured.
2 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
PERFORMANCE
Efficiency MERV 13 model filtration captures more than 90% of airborne particles as small as 3.0 microns in size
Rated airflow 14: up to 900 cu/ft/min; 17: up to 1350 cu/ft/min 21: up to 2000 cu/ft/min 24: up to 2200 cu/ft/min
Pressure drop Creates minimal airflow resistance
INSTALLATION
Installation For use with fan coils in upflow, downflow or horizontal positions
AESTHETICS
Cabinet Steel cabinet in taupe color to match Bryant furnaces and fan coils
- Available with either a MERV 8, MERV 11 or MERV 13 air filter.
- MERV 13 model effectively clearing the air of more than 90% of airborne particles as small as 1.0 micron in size1
- Helps protect heating and cooling equipment
- Deep pleated filters hold more dust for fewer filter changes
- Easy to replace filters. See owners manual for replacement schedule.
- 10-year parts limited warranty on cabinet upon timley registration2
1 Based on third-party testing (2013) showing 90% of particles size 1.0 to 3.0 captured and 98% of particles size 3.0 to 10 captured.
2 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
PERFORMANCE
Efficiency MERV 13 model filtration captures more than 90% of airborne particles as small as 3.0 microns in size
Rated airflow 14: up to 900 cu/ft/min; 17: up to 1350 cu/ft/min 21: up to 2000 cu/ft/min 24: up to 2200 cu/ft/min
Pressure drop Creates minimal airflow resistance
INSTALLATION
Installation For use with fan coils in upflow, downflow or horizontal positions
AESTHETICS
Cabinet Steel cabinet in taupe color to match Bryant furnaces and fan coils
