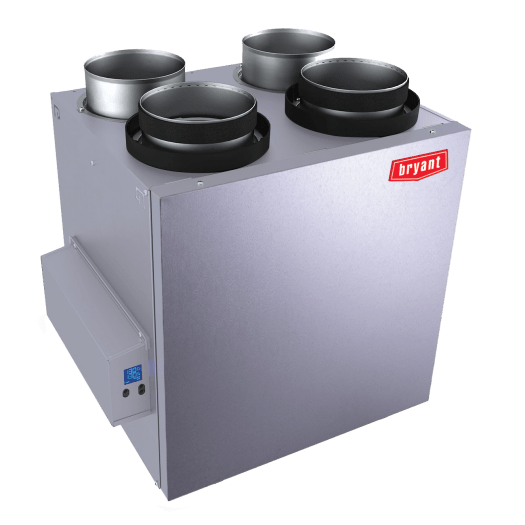

PREFERRED™ VERTICAL HEAT RECOVERY VENTILATOR
PREFERRED™ VERTICAL HEAT RECOVERY VENTILATOR HRVXXSVA
Keep Heating Efficiently and Bring in Fresh Air Without Opening the Windows
This model delivers enhanced, refreshing ventilation for a smaller home with a horizontal indoor furnace or fan coil. Operating on the same principals as all of our HRVs, it transfers indoor heat energy to the incoming air to provide an infusion of freshness on extremely cold days. It’s a Designed for smaller homes in a colder winter climate with moderate or low summer humidity, this HRV is like having a “one-way” window that lets fresh air in without letting your energy dollars out. Its special crossflow core transfers indoor heat energy to the incoming air before sending the stale air out. It's a much better way to enjoy fresh air and cozy comfort inside when it’s cold and dreary outside. great way to let the fresh air in without letting your energy dollars out.
- Air Flow :
- 160 cubic feet per minute
- Sensible Recovery Energy :
- Up to 65% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
EFFICIENCY
Sensible Recovery Energy Up to 65% SRE
PERFORMANCE
Maximum Airflow 160 cubic feet per minute
Sound Quiet operation
Core Life Varies with use - moderate use: approximately 1 year
CONVENIENCES
Filter Change Easy access hinged door for filter cleaning and core cleaning
TECHNOLOGY
Core Polypropylene, crossflow designed core
Core Protection Incoming and outgoing air is prefiltered
Compatible Controls Evolution® or separate ventilator control
INSTALLATION
Placement Wall or ceiling mounted
Venting Vertical
Electrical 115V
AESTHETICS
Cabinet Taupe color on metal matches Bryant furnace and fan coils
Dimensions 21.5"H x 21"W x 16.125"D
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
