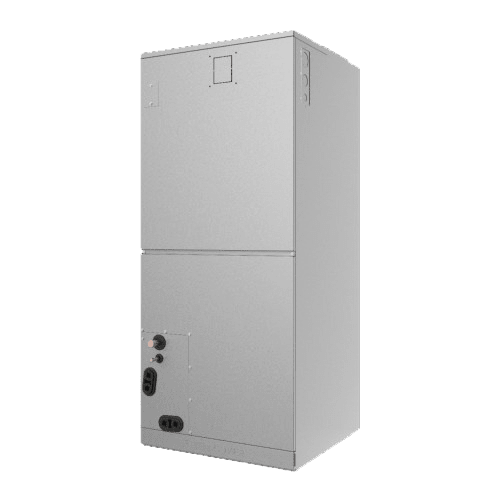

Preferred™ Air Handler Ductless System
Preferred™ Air Handler Ductless System 40MBAB
MAXIMUM FLEXIBILITY WITH MULTI-ZONE COMPATIBILITY
Easily connect select ductless systems with traditional ducted systems or replace outdated gas furnaces while still enjoying the benefits that ductless systems provide. Additionally, you can install the unit in four different positions for maximum flexibility within any space.
- Energy Star® Qualified :
- Some sizes qualified
- COOLING EFFICIENCY :
- Dependent upon outdoor unit pairing
- HEATING EFFICIENCY :
- Dependent upon outdoor unit pairing
Features
- Modes: Cool, Heat, Dry, Fan, Auto
- Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
- Sizes 18k, 24k, 36k, 48k and 60k
- Total system static pressure up to 0.8 in. W.C.
- Less than 2% air leakage
- Quiet indoor operation
- Built-in third-party thermostat compatibility
- Anti-corrosive fin coating
- Available in 208/230V
- Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
- Optional Electric Heat Packages available (5,10,15 and 20 KW)
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
EFFICIENCY MANAGEMENT
ENERGY STAR® Select sizes are ENERGY STAR® certified based on outdoor unit pairing
SOUND
Quiet Levels As low as 18.4 dB(A)1
COMPATIBLE UNITS
Models: 38MARB Outdoor Unit Single Zone, 38MGRB Outdoor Unit Multi-Zone, 38MBRC Outdoor Unit Single Zone
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during low fan-speed operation.
- Modes: Cool, Heat, Dry, Fan, Auto
- Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
- Sizes 18k, 24k, 36k, 48k and 60k
- Total system static pressure up to 0.8 in. W.C.
- Less than 2% air leakage
- Quiet indoor operation
- Built-in third-party thermostat compatibility
- Anti-corrosive fin coating
- Available in 208/230V
- Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
- Optional Electric Heat Packages available (5,10,15 and 20 KW)
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
ENERGY STAR® Select sizes are ENERGY STAR® certified based on outdoor unit pairing
SOUND
Quiet Levels As low as 18.4 dB(A)1
COMPATIBLE UNITS
Models: 38MARB Outdoor Unit Single Zone, 38MGRB Outdoor Unit Multi-Zone, 38MBRC Outdoor Unit Single Zone
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during low fan-speed operation.
