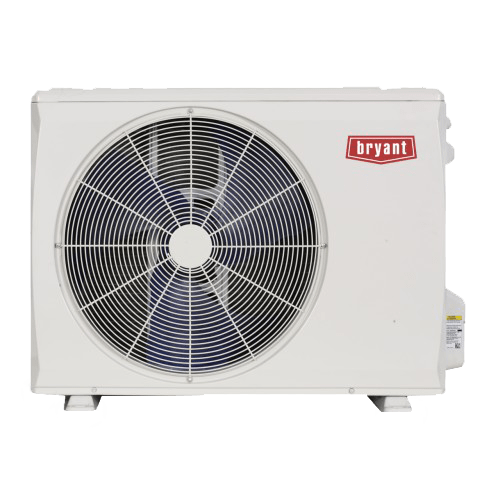

Evolution™ Heat Pump with Basepan Heater
Evolution™ Heat Pump with Basepan Heater 38MPRB
If maximum performance and efficiency are key, look no further than our Evolution™ System heat pump. This ENERGY STAR® qualified ductless system has up to a 28.5 SEER2 rating when paired with the 619PHB High Wall Even when temps drop to as low as -22° F outside, your interior environment stays cozy (when properly sized and matched with specific indoor units). Powerful yet extremely quiet, our best ductless outdoor solution delivers results.
- Energy Star® Qualified :
- All sizes qualified
- COOLING EFFICIENCY :
- Up to 28.5 SEER2
- HEATING EFFICIENCY :
- Up to 18.0 HSPF2
Features
- 100% Heating Capacity at 0° F (-17° C)
- 100% Cooling capacity at -22° F (-30° C) without additional kit
- Up to 75% of Heating Capacity at -22° F (-30° C)
- Inverter Compressor
- Up to 28.5 SEER2 cooling efficiency
- Up to 18.0 EER2 heating efficiency
- Available in 208/230V
- Sizes: 09 / 12 /18
- Built-in basepan heater
- Auto-restart function
- Refrigerant leakage detection
- Extremely quiet outdoor operation, as low as 55.5 dB(A)1
- Anti-corrosive fin coating
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
Specifications
EFFICIENCY
- Up to 28.5 SEER2
- Up to 16.0 EER2
- Up to 18.0 HSPF2
PERFORMANCE
- Outdoor sound: as low as 55.5 decibels1
- OUTDOOR OPERATING RANGE
- Cooling operating range -22° ~ 122° F (-30° ~ 50° C)
- Heating operating range -22° ~ 86° F (-25° ~ 30° C)
LINE LENGTH
- Piping length 98 ft (30m)
TECHNOLOGY
- Inverter Compressor
CAPACITIES
- 0.75 – 1.5 Ton
REQUIREMENTS
- 208/230V
AESTHETICS
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
1 Quietest size within each model group during most common cooling operating condition.
- 100% Heating Capacity at 0° F (-17° C)
- 100% Cooling capacity at -22° F (-30° C) without additional kit
- Up to 75% of Heating Capacity at -22° F (-30° C)
- Inverter Compressor
- Up to 28.5 SEER2 cooling efficiency
- Up to 18.0 EER2 heating efficiency
- Available in 208/230V
- Sizes: 09 / 12 /18
- Built-in basepan heater
- Auto-restart function
- Refrigerant leakage detection
- Extremely quiet outdoor operation, as low as 55.5 dB(A)1
- Anti-corrosive fin coating
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY
- Up to 28.5 SEER2
- Up to 16.0 EER2
- Up to 18.0 HSPF2
PERFORMANCE
- Outdoor sound: as low as 55.5 decibels1
- OUTDOOR OPERATING RANGE
- Cooling operating range -22° ~ 122° F (-30° ~ 50° C)
- Heating operating range -22° ~ 86° F (-25° ~ 30° C)
LINE LENGTH
- Piping length 98 ft (30m)
TECHNOLOGY
- Inverter Compressor
CAPACITIES
- 0.75 – 1.5 Ton
REQUIREMENTS
- 208/230V
AESTHETICS
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
1 Quietest size within each model group during most common cooling operating condition.
