Preferred™ Multi-Zone Heat Pump with Basepan Heater
error This product is no longer in production and may only be available in limited quantities. Contact your dealer for further details.
Preferred™ Multi-Zone Heat Pump with Basepan Heater 38MGR
Deluxe Comfort for Up to Five Separate Spaces, No Ducts Required
Perfect for a home without ductwork or a newly converted space, our PreferredTM Series multi-zone heat pump might be the right choice for you. As a part of the MGR Multi-Zone Ductless System, you can use up to five indoor units supported by just one outdoor unit. The Inverter compressor delivers year-round comfort on the hottest summer days to colder, winter nights (100% capacity as temperatures down to 5° F when properly sized and matched with specific indoor units).
- Energy Star® Qualified :
- Some sizes qualified
- SEER Efficiency :
- up to 23.8
- HSPF Efficiency :
- up to 10.5
Features
- 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
- Inverter Compressor
- Up to 23.8 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor combinations
- Available in 208/230V
- Sizes ranging from 18 to 48
- Built-in basepan heater
- Total piping lengths range from 131 ft. to 328 ft. (40 ~ 100 m) depending on unit size
- Connects two to five multiple style indoor units (PreferredTM) to a single outdoor unit
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 62 decibels1
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2

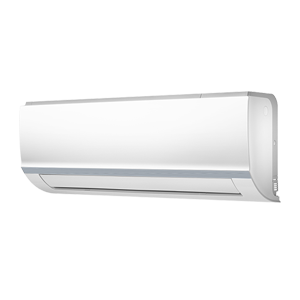

- Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
Specifications
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 23.8 SEER/up to 13.5 EER/up to 10.5 HSPF
ENERGY STAR® Select sizes are ENERGY STAR ® certified based on indoor unit combinations
COMFORT MANAGEMENT
Cooling Outdoor range operates from -13° F up to 122° F (-25° C up to 50° C)
Heating Outdoor range operates from -22° F up to 86° F (-30° C up to 30° C)
SOUND
Quiet Levels As low as 62 dB(A) 1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, and loss of charge
System Capacity 1.5 - 4 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 328 ft.
MODEL
Full Model Number 38MGRQXXX--3
COMPATIBLE UNITS
Full Model Numbers (Multi-Zone System) 619PEQXXXBBMA High Wall, 619REQXXXDBMA Ducted, 619REQXXXCBMA Cassette, 619REQXXXFBMA Floor Console
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.
- 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
- Inverter Compressor
- Up to 23.8 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor combinations
- Available in 208/230V
- Sizes ranging from 18 to 48
- Built-in basepan heater
- Total piping lengths range from 131 ft. to 328 ft. (40 ~ 100 m) depending on unit size
- Connects two to five multiple style indoor units (PreferredTM) to a single outdoor unit
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 62 decibels1
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619PB High Wall, 619RC Cassette, 619RD Ducted, 619RF Floor Console
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 23.8 SEER/up to 13.5 EER/up to 10.5 HSPF
ENERGY STAR® Select sizes are ENERGY STAR ® certified based on indoor unit combinations
COMFORT MANAGEMENT
Cooling Outdoor range operates from -13° F up to 122° F (-25° C up to 50° C)
Heating Outdoor range operates from -22° F up to 86° F (-30° C up to 30° C)
SOUND
Quiet Levels As low as 62 dB(A) 1
CONVENIENCES
Notifications Advanced system diagnostics
TECHNOLOGY
Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, and loss of charge
System Capacity 1.5 - 4 tons
AESTHETICS
Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 328 ft.
MODEL
Full Model Number 38MGRQXXX--3
COMPATIBLE UNITS
Full Model Numbers (Multi-Zone System) 619PEQXXXBBMA High Wall, 619REQXXXDBMA Ducted, 619REQXXXCBMA Cassette, 619REQXXXFBMA Floor Console
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during most common cooling operating condition.
